Introduction
This application is required in case of a connection between ALERT and the AlertMobile app installed on a smartphone (Android or Apple). To ensure communication, the smartphone must have an Internet connection.
AlertMobile Gateway is a Windows system service that provides a gateway between the ALERT server and the Android / Apple push notification server over the Internet.
ALERT sends alarms to smartphones via AlertMobile Gateway using the corresponding push notification service (Google cloud messaging or pushy.me for Android and Apple push notification service for Apple).
|

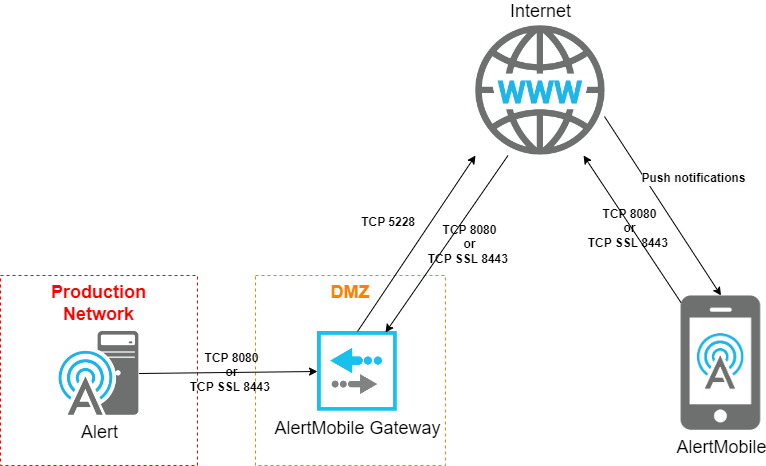

AlertMobile Gateway is an application that can be accessed from outside your infrastructure, so it must be configured alongside your IT department. As you see on the the illustration above, it can be installed on a different computer to the PC hosting the Alert service in a DMZ. In this case, the configuration settings will be defined to reflect your security strategy. |
Prerequisites
Processors: 32 or 64 bits, 2 GHz or more.
Memory (RAM): minimum 2 Go.
disk space: minimum 100 Mo.
Screen resolution: 1024 x 768 minimum
Virtualization: Compatible with most common hypervisors:
- VMWare ESX/ESXi
- Microsoft Hyper-V
- Oracle VirtualBox
Operating Systems:
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016
- Windows Server 2012 R2
- Windows 11
- Windows 10
- Windows 8.1
- Windows 8
- Windows 7 SP1
Microsoft Windows Components:
- AlertMobile Gateway requires the installation of Microsoft .NET framework 4.8 or higher. The installer will check for the required framework and install it if it doesn't exist. However, the framework can be added manually as part of the environment setup. The latest version of the Microsoft .NET Framework can be downloaded from https://dotnet.microsoft.com/download
Installation
If you don't have the install files, a download link is sent on request.
Once downloaded, run AlertMobileGatewaySetup****.exe to start installing AlertMobile Gateway:
